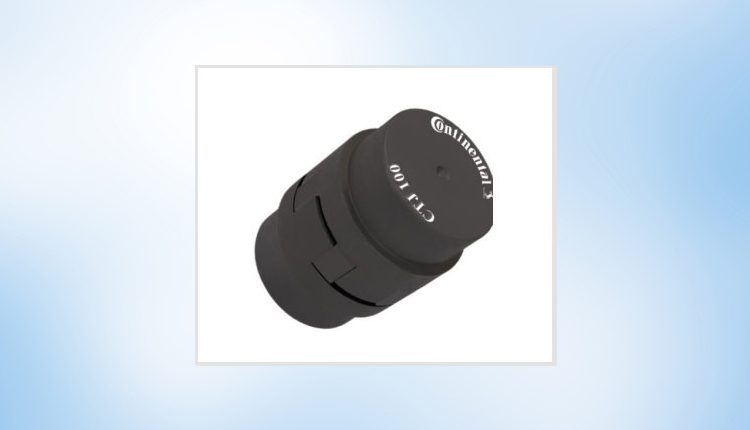

Jaw Coupling

Jaw Coupling

1). Compact & economical general purpose flexible couplings.

2). The Nitrile rubber insert suitable for use in all conditions, unaffected by moisture, grease & oils to withstand temperatures of - 40c to + 100c. Polyurethane insert also available optionally for the entire range.

3). Standard range of couplings covers power ratings from 1.45 kW to 39.75 Kw at 1440 rev/min and shaft size from 9 mm to 60 mm

4). Available with standard spiders and external fitting Snap wrap elements. External Snap Wrap elements allow inspection or change of elements without dismantlin the couplings from the shafts.

5). Spacer version using standard Cast iron spacers or light weight Aluminium spacers enable maintenance of Pumps without disturbing the alignment or moving the driving and driven machine. Aluminium spacer couplings have two external elements for added flexibility.

6). They have angular mis-alignment capacity up to 1c and parallel mis-alignment capacity up to 0.4 mm depending on the size of the coupling.
